Pressure, temperature and flow instruments
Gauges and meters for reliable readings at the point of control, with the siphons, snubbers and isolation valves that keep them accurate and protected.
- Dial sizes
- 63 · 100 · 150 mm
- Pressure ranges
- Vacuum to 600 bar
- Temperature ranges
- -20 to 500 °C
- Connections
- ¼" · ½" NPT / BSP, bottom or back
Pressure & flow instruments we supply
Pressure and temperature gauges, accessories and flow meters for fuel, oil and chemicals. Every line is quoted with its standard, material and lead time.

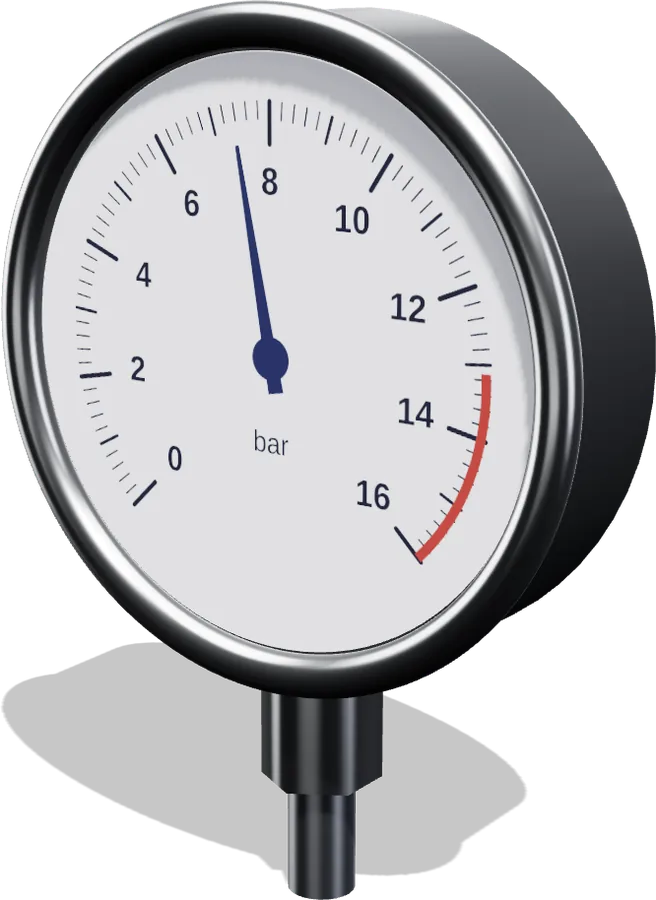

Bourdon-tube pressure gauges
General-purpose gauges for water, air, oil and steam in dry or liquid-filled cases.
Glycerin-filled gauges
Liquid filling dampens needle flutter from pumps and compressors and extends gauge life under vibration.
Diaphragm-seal gauges
Isolate the gauge from corrosive, viscous or crystallising media and from sanitary process lines.
Bimetal thermometers
Robust dial thermometers for pipes and vessels, with thermowells for removal under pressure.
Siphons, snubbers & needle valves
Siphons protect gauges from live steam; snubbers smooth pressure pulses; needle valves isolate the gauge for replacement.
Liquid flow meters
Mechanical and digital meters for diesel, oils and chemicals at receiving and dispensing points.
Range at a glance
Need something outside this range? We import to your specification and mark the lead time on the quotation.
- Dial sizes
- 63 · 100 · 150 mm
- Pressure ranges
- Vacuum to 600 bar
- Temperature ranges
- -20 to 500 °C
- Connections
- ¼" · ½" NPT / BSP, bottom or back
- Case
- Stainless steel · dry or glycerin-filled
- Accuracy
- Class 1.0 – 1.6 (EN 837-1)
- Flow media
- Diesel · lubricating oils · chemicals · water
- Accessories
- Siphons · snubbers · needle valves · thermowells
Industries we supply
See the service conditions we plan for in each industry.
Power generation
Boiler, feedwater and cooling water circuits run hot and continuously.
View industry
Pharmaceuticals & food
Process lines must resist cleaning chemicals, stay easy to clean and keep the product free from contamination.
View industry
Manufacturing & utilities
Water, compressed air and steam lines are where unplanned downtime usually starts.
View industry
Oil, gas & refineries
High pressure, high temperature and flammable media, with turnaround deadlines that do not move.
View industryPressure & flow instruments questions
How do I choose the right pressure gauge range?
Choose a range where your normal working pressure sits around the middle of the dial and does not exceed about 75% of full scale. Too low a range overloads the gauge; too high a range makes readings imprecise.
Why does my gauge needle shake?
Pulsation from pumps or compressors, or line vibration. A glycerin-filled gauge dampens the needle and a snubber smooths pressure pulses. Both extend gauge life.
Do I need a siphon on a steam line?
Yes. A siphon holds condensate that shields the gauge mechanism from live steam temperature. Without it, steam gauges fail early and read inaccurately.
Can you supply calibration certificates?
Calibration certificates can be supplied on request for applicable instruments. Mention it on your RFQ.
